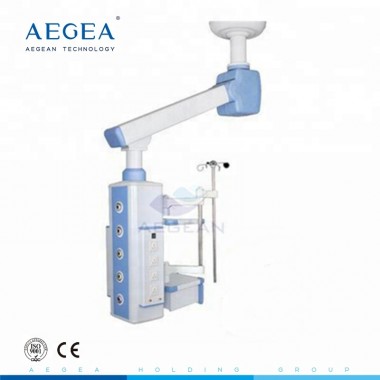

AG-360S Single arm operation theatre surgical hospital medical electric pendant
Raw material very important: imported 7002 Aluminum profiles, treated by powder coating technical, antistatic, UV resistant, resistant for chemical reagents to clean, beautiful, durable
Universal socket, suitable all the countries plugs, very convenient and considerate
1) One arm outside the Dakota Electric is commonly used in modern operating room of the medical utility of a new auxiliary equipment, and its compact structure, rational design, both electric lift while the scope of a certain diameter rotating 340 degrees, can be reduced when health care workers, not after the impact of any increase in work, and configure antipneumatic braking drift, in accordance with the requirements of health care workers to easily move and lock the location of tower.
2) Necessary medical gases, to attract, the strength of electricity, the network output function terminal box on the platform, it is ideal for medical and nursing staff of the medical gas, power, equipment workstation platform.
Model | AG-360S | |
| Working Power | As per different countries | |
| Motor power | ≤1kw | |
| Arm Specification: | ||
| Installing mode: | Ceiling mounted | |
| Qty: | 1pc | |
Length: | 1000m Appropriate changes according to the hospital is available | |
Vertical Translation: | 600mm | |
Material: | High-strength aluminum alloy | |
Surface treatment | Electrophoresis and powder coating ( Environmental) | |
| Net loading capacity: | 150kg | |
| Level Rotation Angle: | 340° Can be moved separately | |
| Service Head Specification: | ||
| Qty: | 1pc | |
| Material: | High-strength aluminum alloy | |
| Surface treatment: | Electrophoresis and powder coating | |
| Color: | Sky-blue | |
| Level Rotation Angle: | 340° | |
| Equipment Shelves | Two layers (height-adjustable) | anti-collision design for filleted corner |
| Standard Gas Outlets: | 2*Oxygen, 2*Vacuum | Optional : 1. colors and shapes for distinction with gas |
| Electrical sockets: | 8pcs | 220V, 10A |
| Grounding terminal: | 2pcs | 220V, 10A |
| Network interface: | 1pc | RJ45 |
| Injection Pump: | 1set | Stainless Steel |
| Infusion Pump: | 1set | Stainless Steel |
| Drawer: | 1pc | |
| Brake System Specification: | ||
| Each Joint | Pneumatic brake | no drifting,operate easily |
